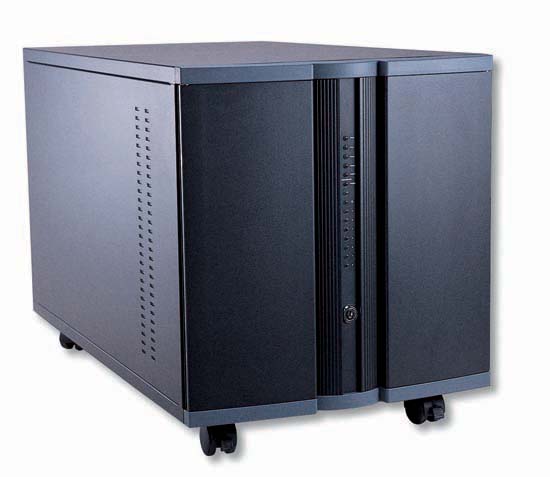

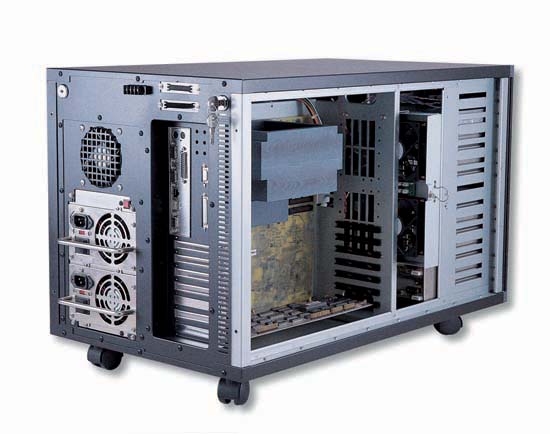

| Server / RAID Case or 19" Rack Mounted | |
| Construction: | Heavy Duty Cold Rolled Electroplated Steel |
| Color: | Black or Custom Design |
| System Boards: | Duel Xeon, Pentium 4, Dual Pentium III based boards |
| Motherboard Size: | Supports ATX M/B (Max. to 12" x 13") or 14-slots Passive Backplane |
| Drive Bays: | 15 x 5.25" Open Bays |
| Power Supply: | (Rear Chassis Installation) PS/2 Size Single or Redundant Power Supply (Optional) |
| Cooling Units: | 5 x 9cm (51CFM)Heavy Duty Ball Bearing Fans |
| Thermal Management Card: | Installed |
| Locks: | Lockable Security Access and Lockable Casters |
| Expansion Slot: | 7-slots or 14-slots Passive Backplane |
| Indicators: | LEDs for Power, HDDs, Fans, and Temperature Activity/Status |
| Buttons: | Power On/Off & System Reset |
| Dimensions: | 410(W) x 416(H) x 710(D) mm (16.2" x 16.4" x 28") |
| Weight: | 33 kgs / 72.6 lbs |
| Cu. ft.: | 9.46 |
| Carton Size: | 56 x 85.5 x 56(Cm) (22" x 33.7" x 22") |
| Product Applications: | Network Storage, Optical or Tape Storage Duplicator |
15組5.25吋光碟機空間/可選購RK-1520抽拉式層板
