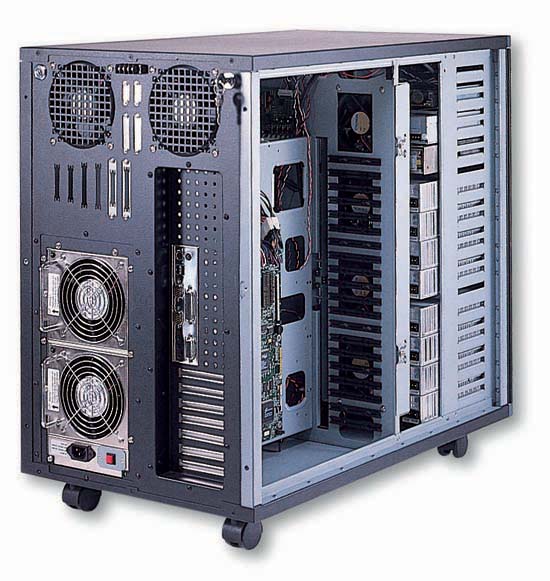

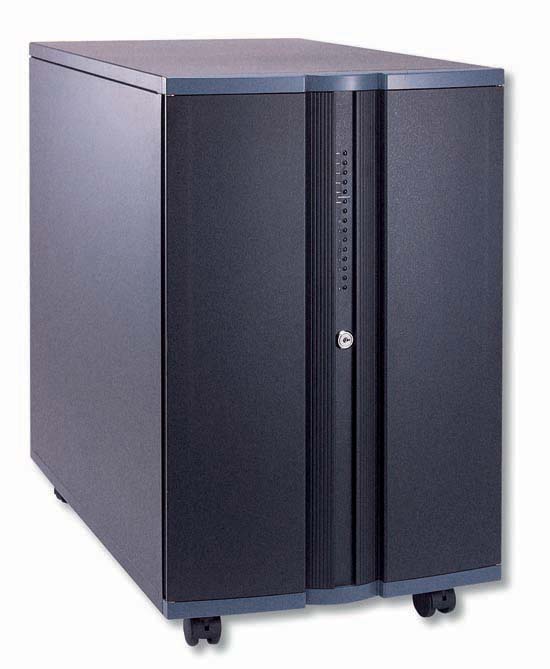

| Server / RAID Case or 19" Rack Mounted | |
| Construction: | Heavy Duty Cold Rolled Electroplated Steel |
| Color: | Black, Beige, or Custom Design |
| System Boards: | Duel Xeon, Pentium 4, Dual Pentium III based boards |
| Motherboard Size: | Supports ATX M/B (Max. to 16" x 13") or 14-slots Passive Backplane |
| Drive Bays: | 23 x 5.25" Open Bay |
| Power Supply: | (Rear Chassis Installation) PS/2 Size Single or Redundant Power Supply (Optional) |
| Cooling Units: | 8 x 9cm (51CFM) Heavy Duty Ball-Bearing Fans, 2 x 12cm (108CFM) Heavy Duty Ball-Bearing Fans |
| Thermal Management Card: | Installed |
| Locks: | Lockable Security Access and Lockable Casters |
| Expansion Slot: | 7-slots or 14-slots Passive Backplane |
| Indicators: | LEDs for Power, HDDs, Fans, and Temperature Activity/Status |
| Buttons: | Power On/Off & System Reset |
| Dimensions: | 410(W) x 600(H) x 710(D) mm (16.2" x 23.6" x 28") |
| Weight: | 44 kgs / 97 lbs |
| Cu. ft.: | 12.2 |
| Carton Size: | 54.8 x 73.6 x 85.7(Cm) (21.6" x 29" x 33.7") |
| Product Applications: | Network Storage, Optical or Tape Storage Duplicator |
23組5.25吋光碟機空間/可選購上架式抽拉層板RK-1520
